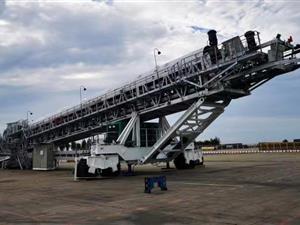

Annular Stacker
1. Scope of Application The annular stacker is a kind of process equipment used for stacking various bulk materials to realize storage, discharge and loading. It is used in metallurgy, mining, wharf and other industries. 2.Equipment Process and Structure The annular stacker is a light, efficient, intelligent and environment-friendly stacker, which is composed of a belt conveyor system, a telescopic boom, a luffing mechanism, a traveling chassis, a hydraulic system, and an electronic control system. The boom's free expansion and luffing functions can meet the requirements of different stacking radius and stacking height. The walking chassis in the form of a rear track and a front tire structure can realize slewing distribution and flexible movement of the whole machine. The diesel generator set can be equipped to realize the automatic relocation of the whole machine. The equipment can be remotely controlled to achieve safe and intelligent operation. At the same time, compared with traditional stacking equipment, it does not require civil construction. 3. Product Introduction Our company has developed annular stacker since 2019, and its overall technical level has reached the advanced level in the industry. Technical features: Suitable for various bulk materials; The machine control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine. 4. Main Experience Projects Domestic and abroad project such Japanese iron making project.
Northen Heavy Industries Group(NHI)

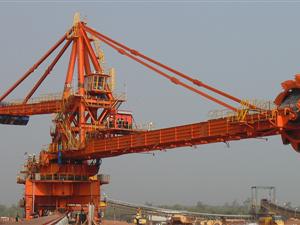

Boom Type Bucket-Wheel Stacker Reclaimer
1.Scope of Application Boom type bucket-wheel stacker reclaimer is a large loading and unloading equipment that can span the material pile, stacking ore, raw coal and other bulk materials, and realize continuous operation of warehousing materials. It is mainly used in power, metallurgy, coal, building materials, ports, chemical industry and other industries. It is a linear storage yard that emphasizes storage without blending requirements. 2.Equipment Process and Structure The boom type bucket wheel stacker reclaimer is an integrated stacker reclaimer, which can not be used for stacking and reclaiming at the same time. The boom bucket wheel stacker reclaimer can be divided into wire rope pitching and hydraulic pitching according to the pitching form. According to the layout of the ground belt conveyor, the tripper has a variety of structural forms, such as fixed single tripper, semi flat tripper, full flat tripper, fixed double tripper, cross double tripper, and full function tripper. The boom bucket wheel reclaimer does not have tripper, only has the reclaiming function. 3.Product Introduction Our boom type bucket wheel stacker reclaimer has developed various products with reclaiming capacity, boom length, rail span and structure, and has independent intellectual property rights and won many awards in Shenyang City and Liaoning Province. Technical features: It is suitable for various bulk materials and heterogeneous material yards for storing various materials; Reclaiming capacity: 100~10000t/h; Slewing radius range: 20~60m. The machine control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine. 4. Main Experience Projects Domestic: 40 sets for Zhangjiagang, Luxi Chemical, Tangshan Guofeng Project, etc Foreign Countries: 18 sets for projects in India, Iran, Myanmar, etc
Northen Heavy Industries Group(NHI)

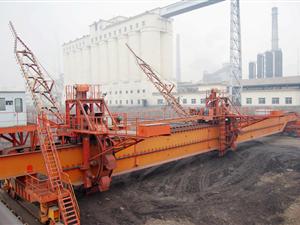

Bridge Type Bucket-Wheel Blending Reclaimer
1. Scope of Application The bridge type bucket wheel blending reclaimer adopts full section reclaiming, which is coordinated with blending stacker to achieve the homogenization effect. The equipment is widely used in iron and steel industry, building materials and energy industries, mainly used in strip stockyards with high requirements for material homogenization performance, and the process requirements for mixing and reclaiming of coal, concentrate, fine ore and other bulk materials. 2.Equipment Process and Structure Generally, 1~2 piles of material are arranged in one linear stockyard, and the equipment adopts the full section reclaiming process, which cannot cross piles. The equipment can be divided into single side rake and double side rake according to the layout of stock yard. Each equipment of single rake structure corresponds to a stock pile. Generally, two reclaimers are equipped with one slewing stacker, which are arranged on both sides of stacker. Each equipment of double harrow structure corresponds to two stock piles. 3.Product Introduction Our bridge type bucket wheel reclaimer products have been updated for many times, and now various products have been developed. The products with reclaiming capacity, rail span and structure have independent intellectual property rights and won many awards in Shenyang City and Liaoning Province. Technical features: Suitable for all kinds of bulk materials and linear homogenizing material yard for single material storage; Reclaiming capacity: 40~3500t/h; Rai Span: 16.4~50m. The machine control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine. 4. Main Experience Projects Domestic: 38 sets for Rizhao, Masteel and Tonggang projects Foreign countries: 4 sets for projects in India, Iran, Laos, etc
Northen Heavy Industries Group(NHI)

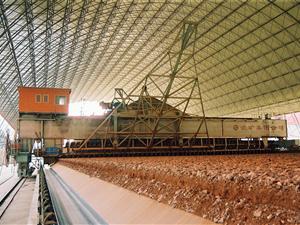

Bridge Type Scraper Reclaimer
1. Scope of Application The bridge scraper reclaimer adopts the full section reclaiming process, which is coordinated with the mixing stacker to achieve the homogenization effect. It is widely used in building materials, iron and steel, and energy industries, mainly used to scrape strip stockyards with high requirements for material homogenization performance, and complete the process requirements for mixing and reclaiming of limestone, coal, concentrate and other bulk materials. 2.Equipment Process and Structure Generally, two piles of materials are arranged in one linear stockyard, and the equipment cannot cross stockpiles. Adopt the reclaiming process of full section reclaiming. According to the ground belt conveyor layout, the equipment can be divided into three structures: horizontal type, inclined type and head up type. The equipment can be divided into mechanical rake and hydraulic rake according to the rake form. 3. Product Introduction Since 1990, our company has started to research and develop bridge scraper reclaimer products. After many updates, we have developed various products with reclaiming capacity, gauge and structure. We have independent intellectual property rights and won many awards from Shenyang City, Liaoning Province and China Machinery Industry Federation. Technical features: Suitable for all kinds of loose materials and strip homogenizing material yard for single material storage; Reclaiming capacity: 40~2000t/h; Track gauge: 16.4~65m. The control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine. 4. Main Experience Projects Domestic: 24 sets of Anhui Conch, Ningxia Haolong, Kaisheng Institute, etc Foreign countries: 18 sets for Vietnam, Türkiye, Indonesia projects, etc
Northen Heavy Industries Group(NHI)

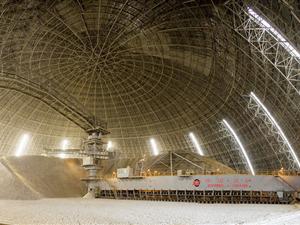

Circular Homogenizing Bridge Scraper Stacker Reclaimer
1. Scope of Application Circular Homogenizing Bridge Scraper Stacker/Reclaimer adopts the continuous synthetic stacking and full section reclaiming process to achieve homogenization effect. It is mainly used for stacking limestone, coal, ore and other bulk materials that need to be mixed in the building materials, coal, chemical industry and metallurgy industries. 2.Equipment Process and Structure Circular Homogenizing Bridge Scraper Stacker/Reclaimer is an integrated stacker reclaimer, which can be used for stacking and reclaiming at the same time. Circular Homogenizing Bridge Scraper Stacker/Reclaimer is mainly arranged indoors or outdoors, and drainage shall be paid attention to when arranging outdoors. Common specifications of rail diameter are 60m 80m 90m 95m 100m 110m, etc. 3.Product Introduction Our company began to develop Circular Homogenizing Bridge Scraper Stacker/Reclaimer in 1990, and has produced hundreds of sets. After many times of upgrading, its overall technical level has reached the advanced level of the industry. It has independent intellectual property rights and has won the Science and Technology Progress Award and the Revitalization Award of Liaoning Province, Shenyang City and China Machinery Industry Federation for many times. Technical features: It is suitable for circular pre-homogenizing stockyard of various bulk materials; Stacking capacity: 100~3000t/h Reclaiming capacity: 100~1200t/h; Rail diameter: 55~130m. The machine control can realize the integration of mechanical, electrical and hydraulic systems to the unmanned operation of the whole machine. 4.Main Experience Projects Domestic: 24 sets of Tangshan Jidong, Basu Conch, South Hunan Project of Kaisheng Institute, etc Foreign countries: Laos, Indonesia, Uzbekistan, etc. 5 sets
Northen Heavy Industries Group(NHI)

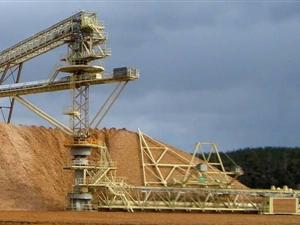

Circular Overhead Stacker and Screw Reclaimer
Northen Heavy Industries Group(NHI)

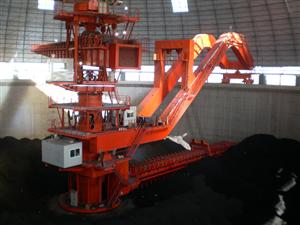

Circular Overpile Stacker Reclaimer
Northen Heavy Industries Group(NHI)

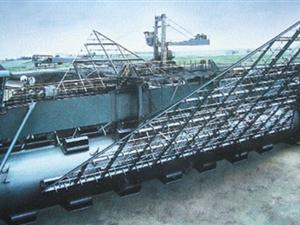

Drum Reclaimer
Northen Heavy Industries Group(NHI)

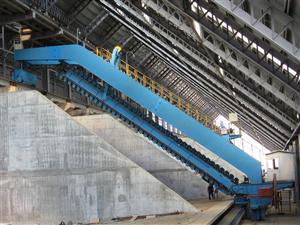

Portal Scraper Reclaimer
Northen Heavy Industries Group(NHI)

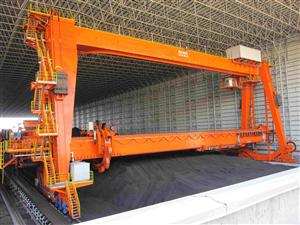

Portal Type Bucket-Wheel Stacker Reclaimer
Northen Heavy Industries Group(NHI)

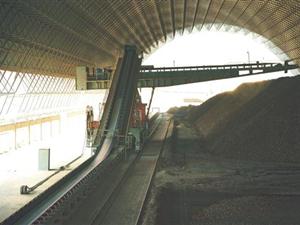

Side Boom Stacker
Northen Heavy Industries Group(NHI)

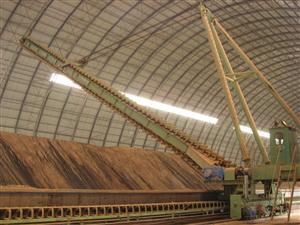

Side Scraper Reclaimer
Northen Heavy Industries Group(NHI)

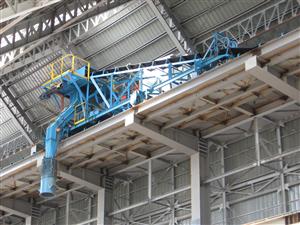

Travelling Tripper
Northen Heavy Industries Group(NHI)
